Built in WiFi & Bluetooth options NOW available!
The world’s only
satellite and cellular solution for global voice, data and aircraft tracking.
Because we know how valuable your cockpit space is.
We set our design engineers the challenge of fitting a lot of functionality into a very small space.
The results are some very impressive measurements indeed.

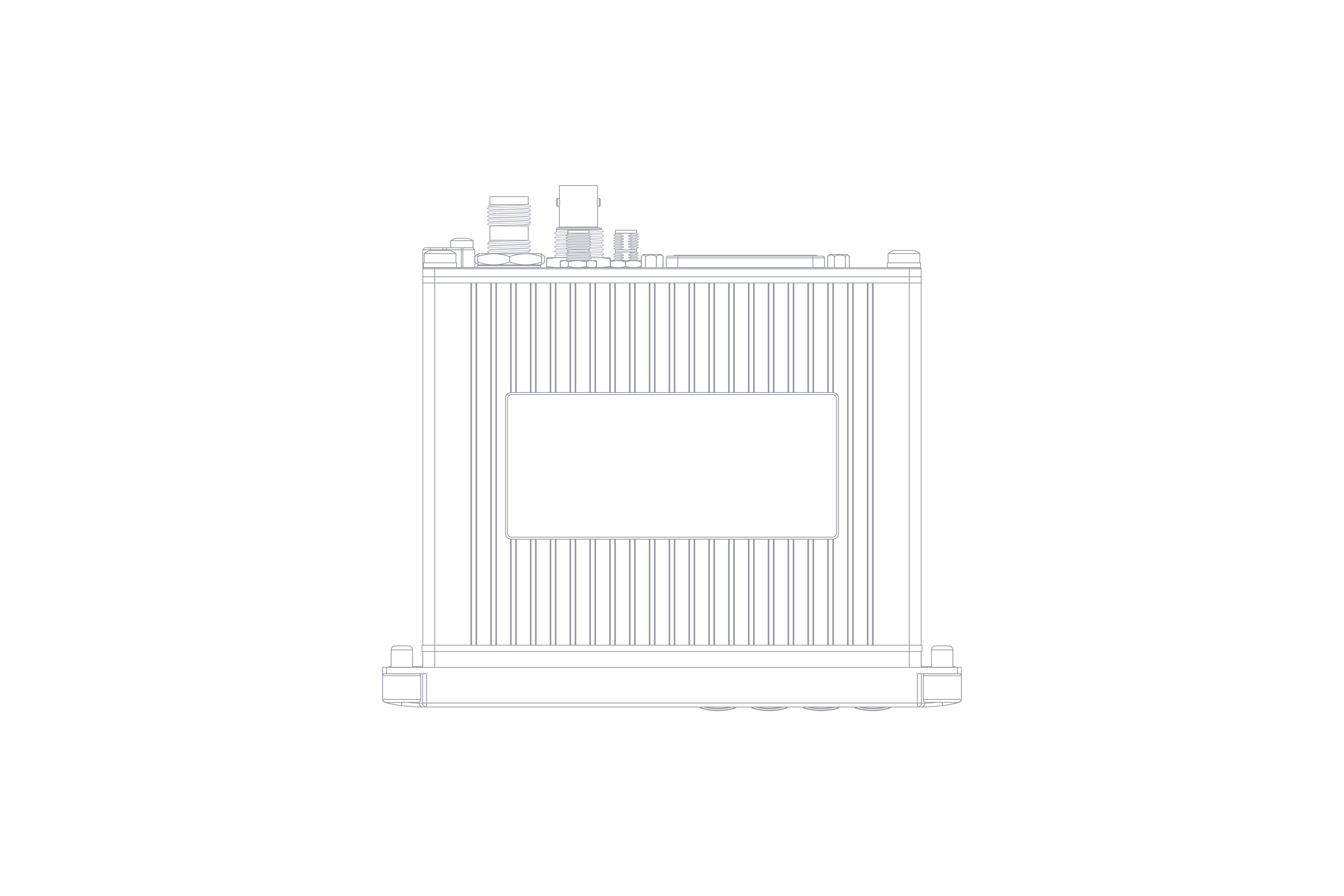

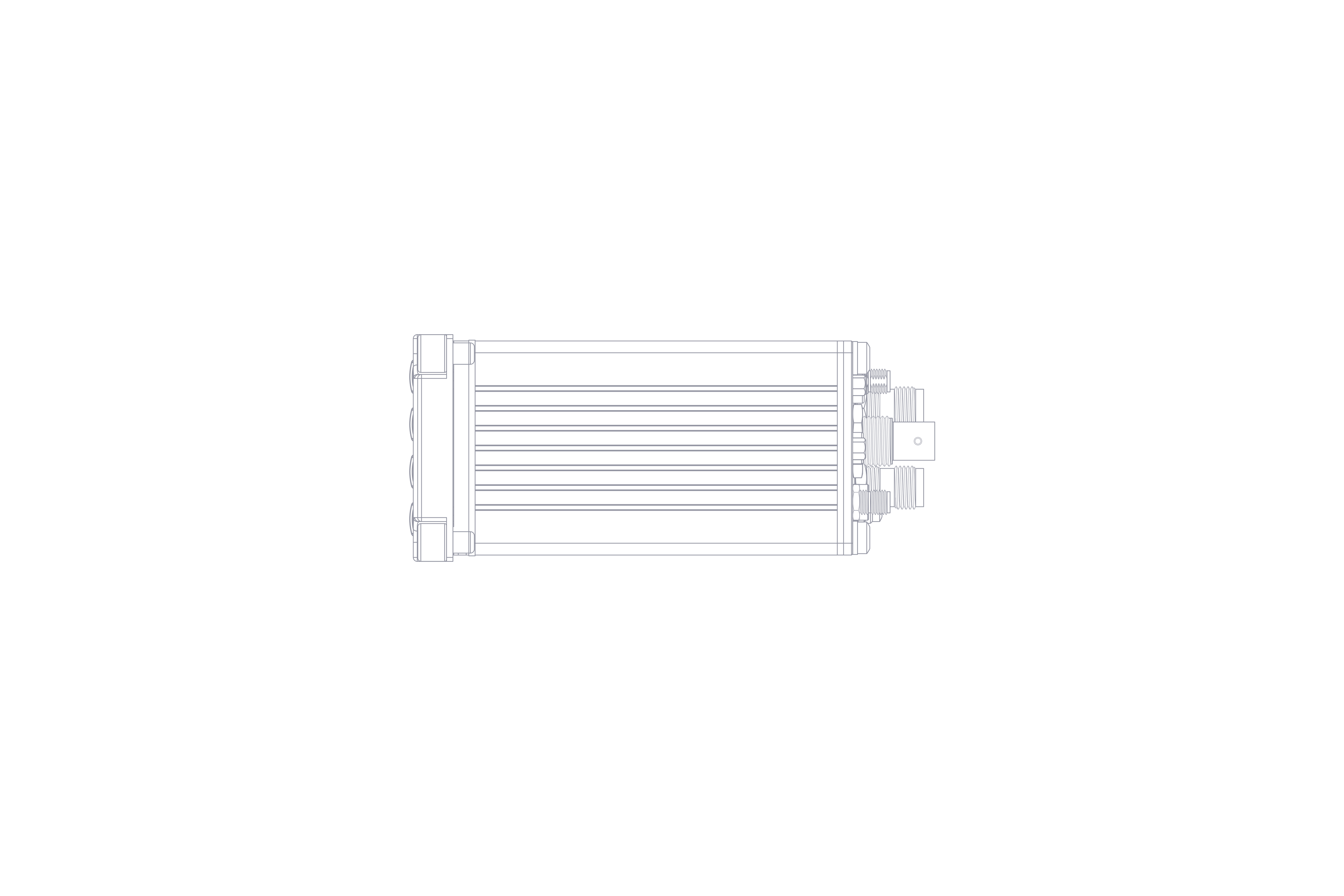

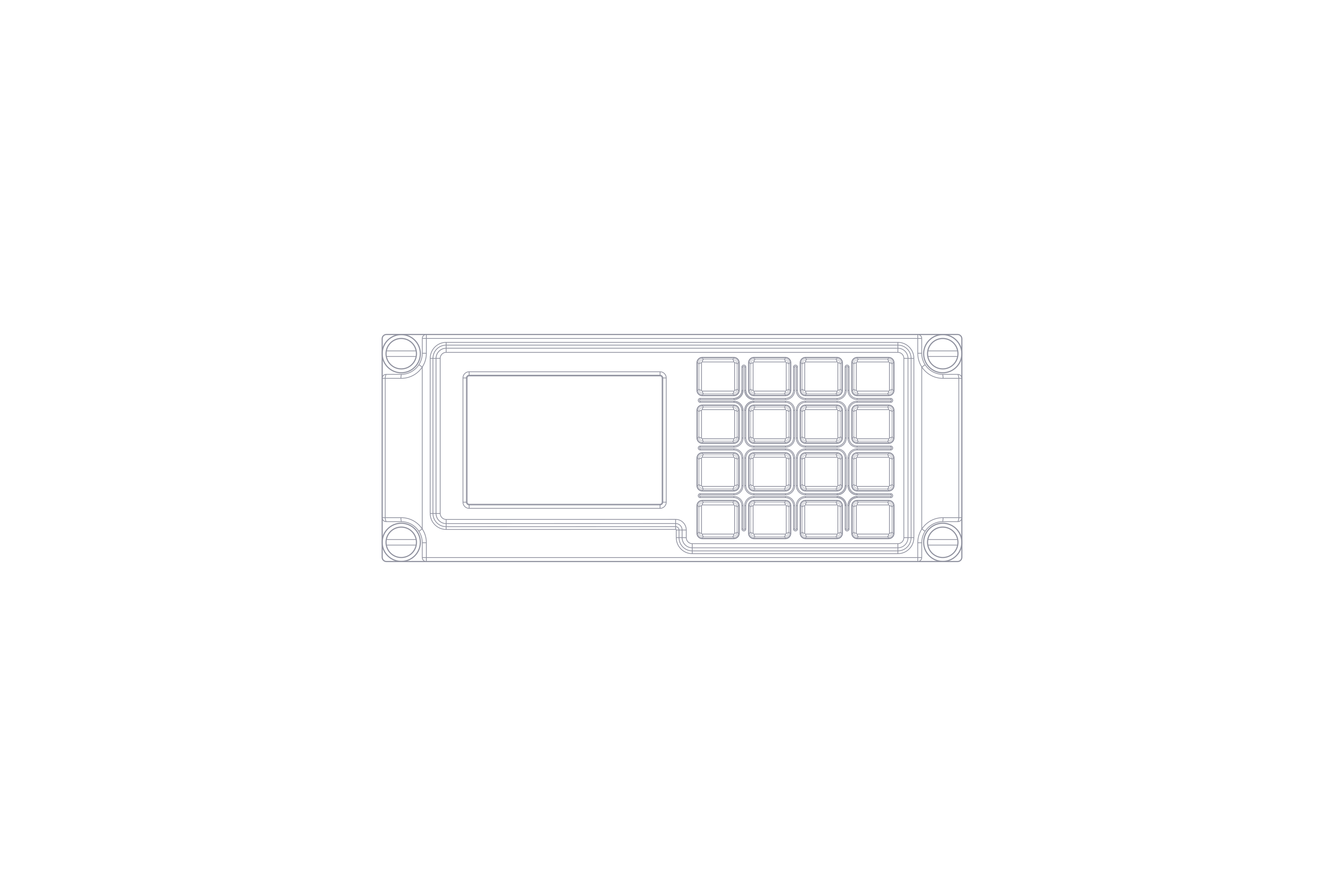

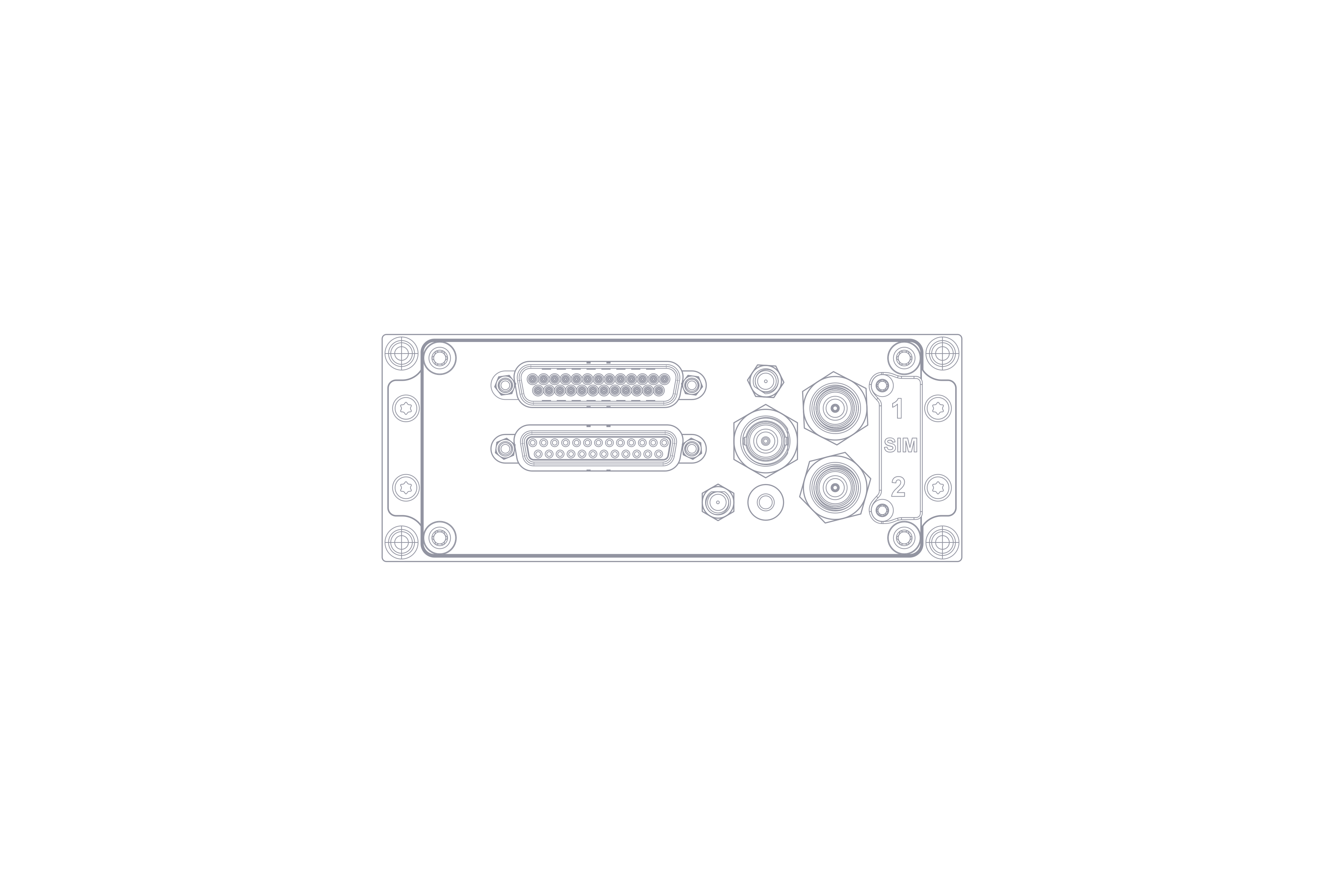

Flightcell DZMx dimensions

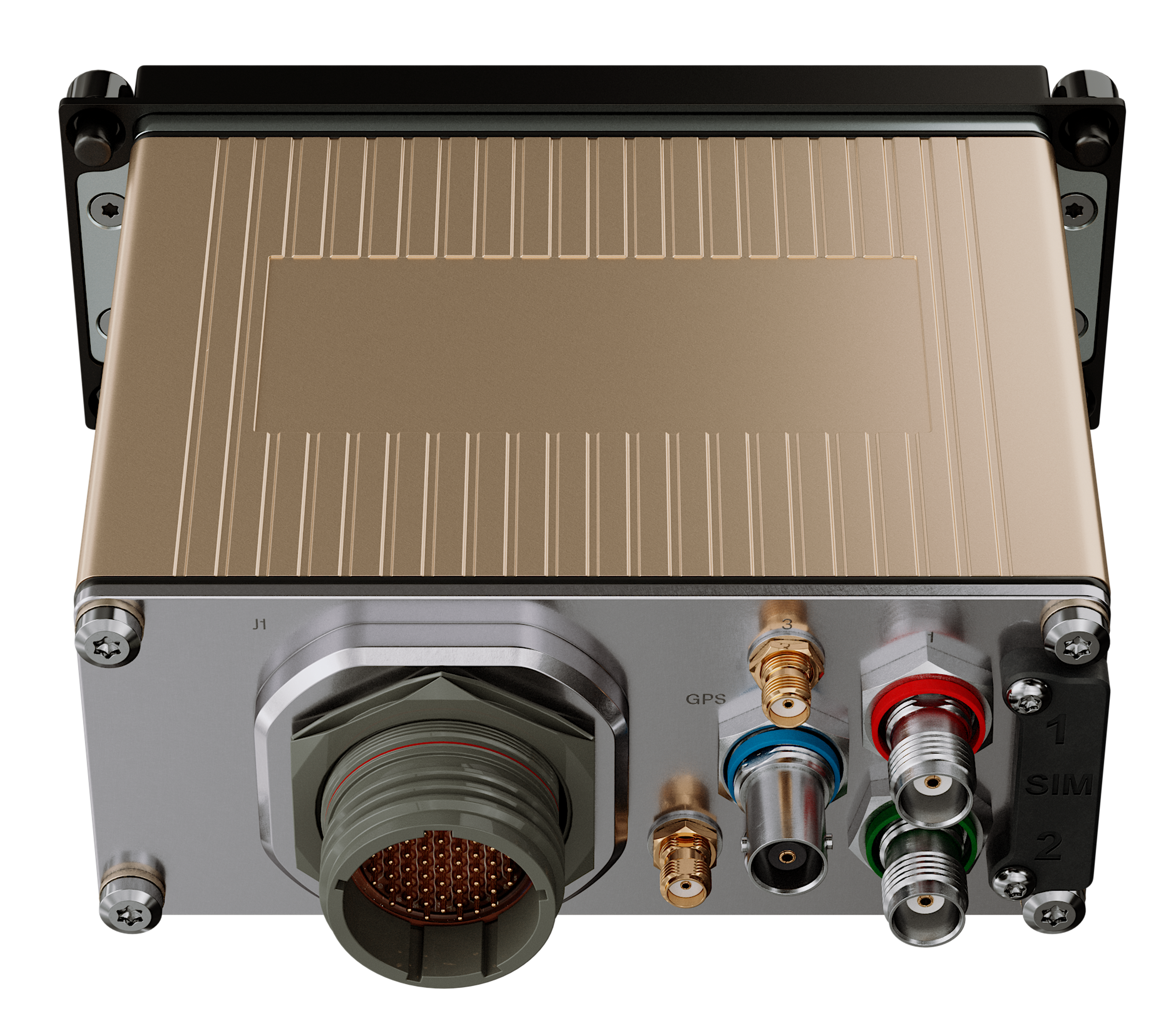

The world's toughest satcom system
The U.S. Department of Defence demanded toughness, so we build DZMx systems to MILSPEC, designed to withstand extremes of temperature, vibration and impact. DZMx has a super-strong machined alloy faceplate, extruded alloy housing and is DO160G compliant.
Environmentally sealed for a longer life
DZMx is an environmentally sealed unit that meets IP53 and NEMA 3.
Proven in hostile physical environments such as Antarctica and the deserts of Iraq, DZMx is designed to resist the incursion of salt fog, water, sand and dust.
The compact all-in-one design means cheaper installation
All DZMx's electronics are installed in one compact unit – there’s nothing in the avionics bay, and minimal wiring, which means substantial savings on installation costs.
- Built in WiFi and Bluetooth®
We now offer built in WiFi and Bluetooth® options for all DZMx configurations.
WiFi and Bluetooth® hardware and antennas are all located within the DZMx housing, measuring just 125mm x 120mm x 55mm (4.95" x 4.72" x 2.18"). No external hardware is required.
Provides a cellular broadband data connection for onboard smart devices and connected equipment. A dedicated app provides SMS and SBD messaging, voice calling capability, and DZMx configuration and contacts management. Bluetooth® is bundled with the WiFi option.
Pairs and connects onboard devices to the aircraft's ICS. Mobile phone calls can be taken through the headset, providing a handsfree capability, and there is the added ability to stream audio.
Easy to use, with an intuitive and familiar keypad layout.
Soft touch, backlit silicone keypad
Miskey prevention guard
Convex keys for accurate gloved operation
Easy to use LCD menu
Night vision compliant
Both the Keypad and LCD display have night vision compliant back-lighting.
NVIS A compliant (MIL3009)
NVIS B compliant

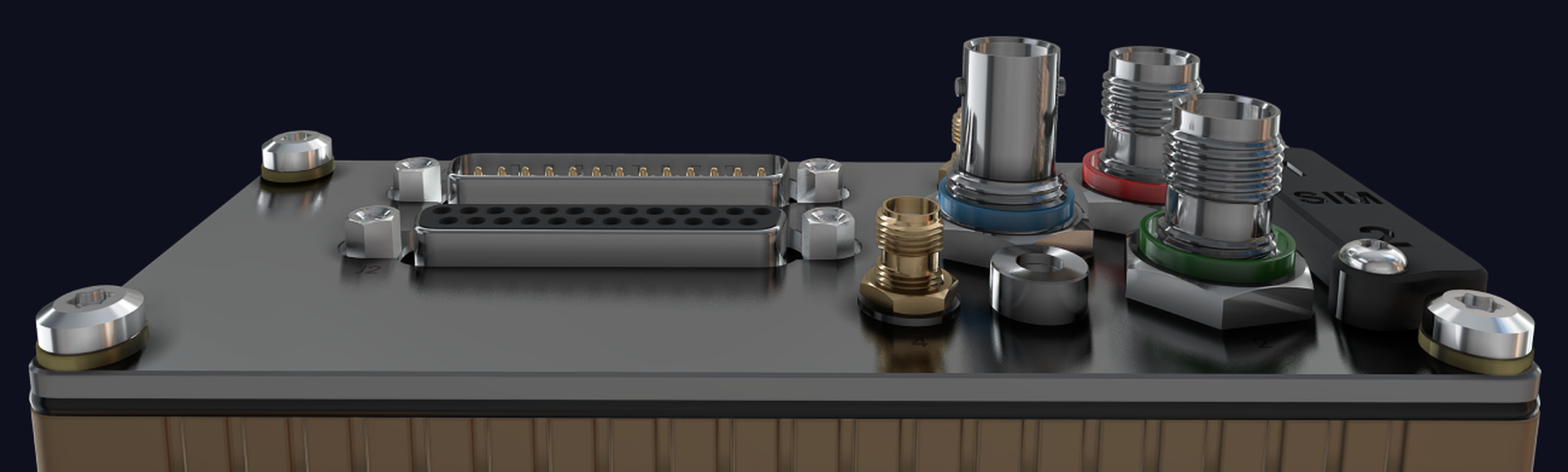

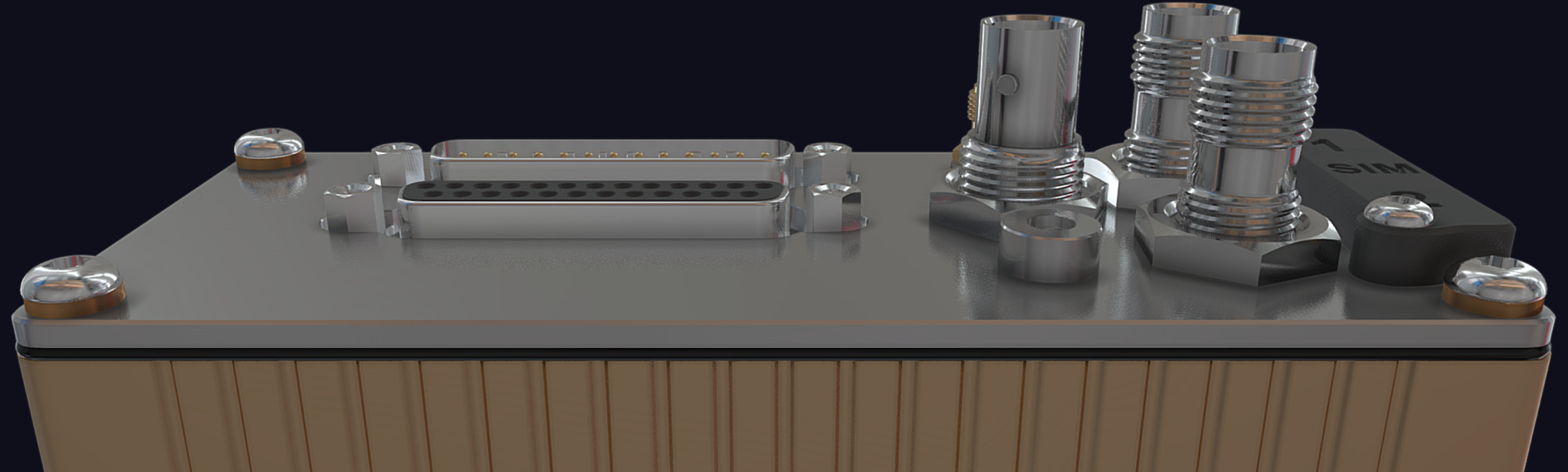

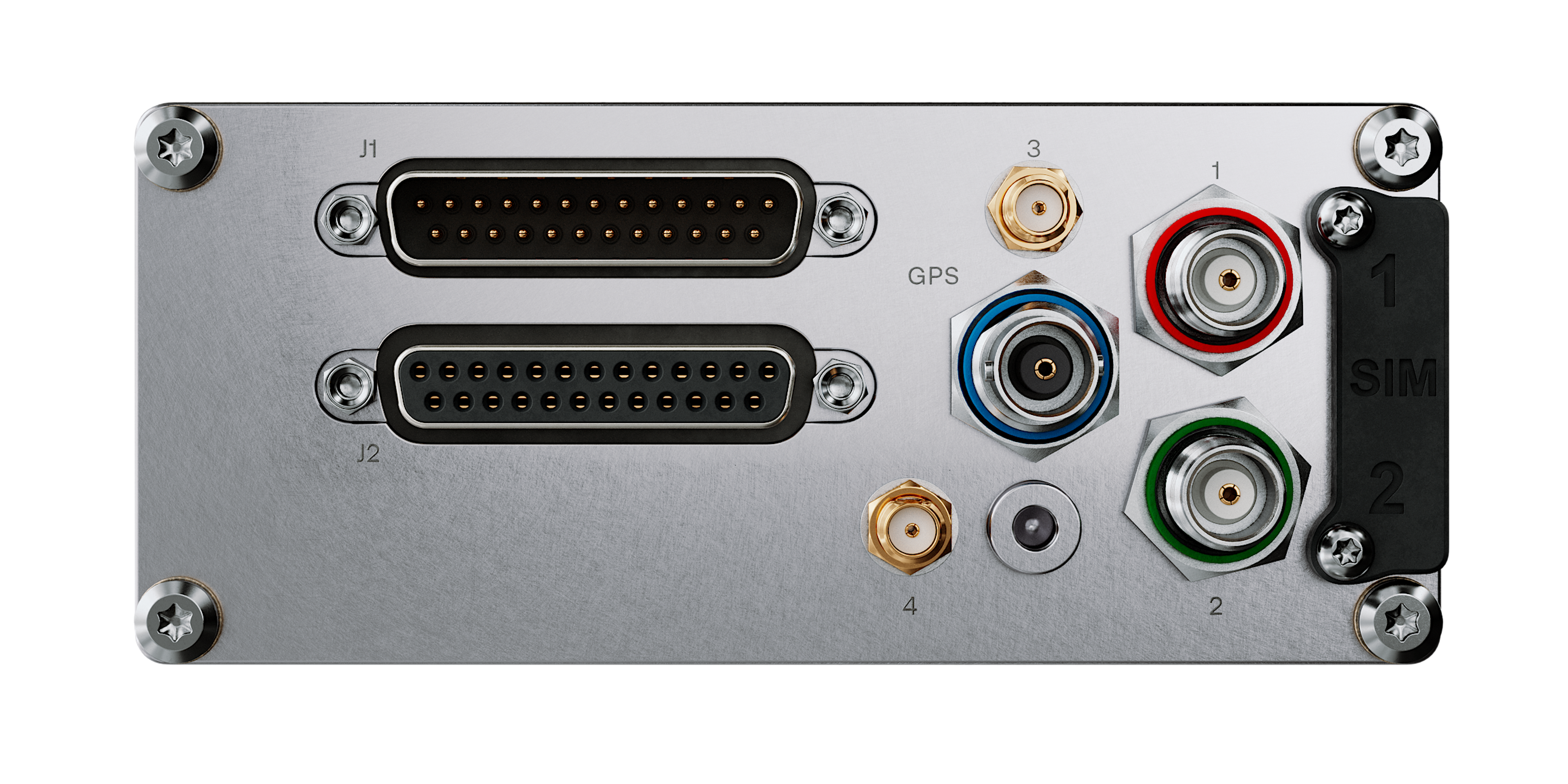

Multiple connection options for your devices
DZMx is incredibly versatile, giving you multiple interface and protocol options for connecting your devices:
USB plug in port
D25 Serial Connectors (male and female)
RS232, RS422, RS485, ARINC 429
TNC satellite or cellphone antenna connection
BNC GPS antenna connection
Ethernet and USB

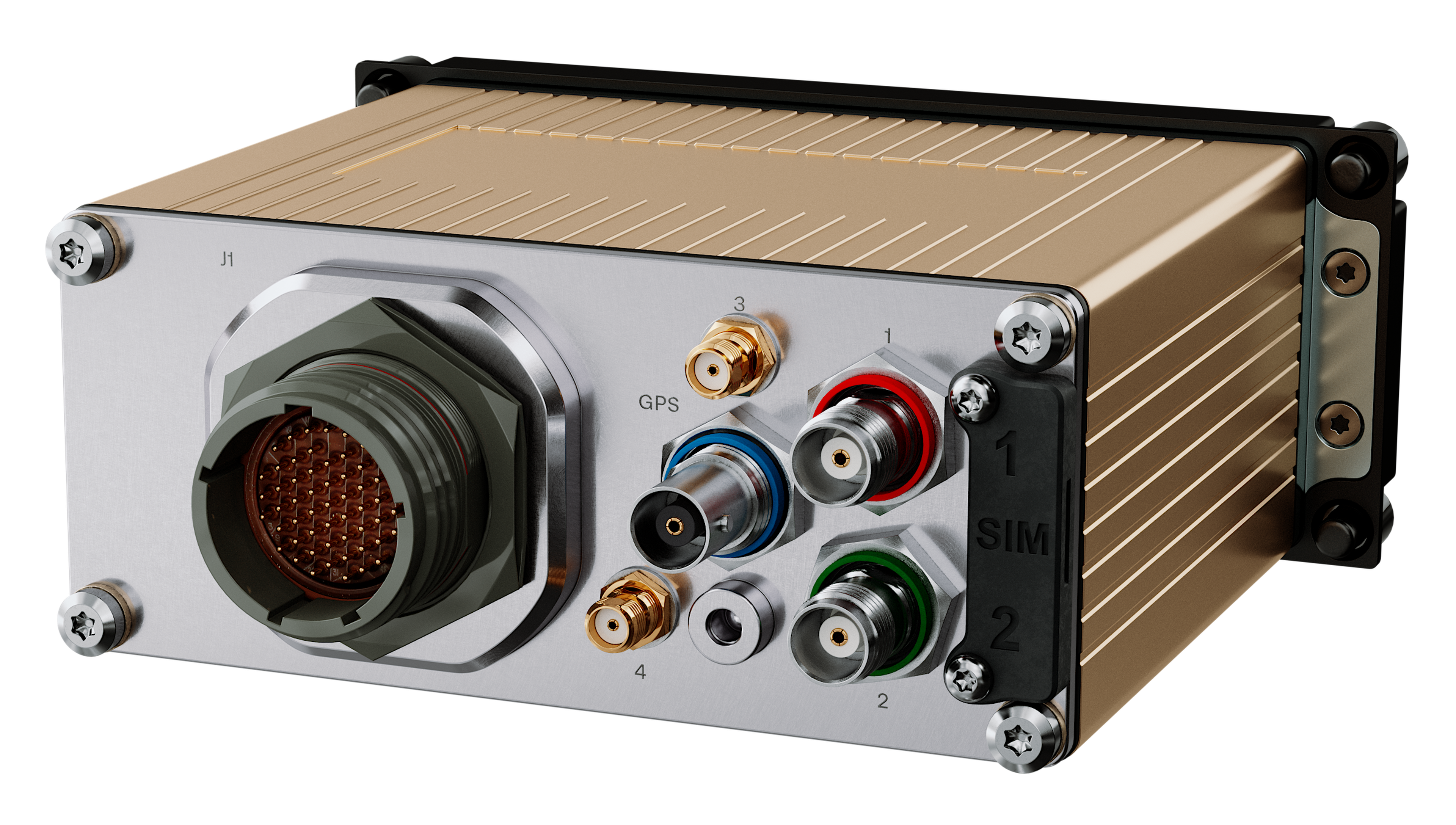

External SIM card access ports
We've made sure it's easy to access the external SIM card slots in case you change your satellite or cellular network service provider.
DZMx Remote Head
The optional DZMx Remote Head unit allows full operational functionality from one or multiple remote locations on the aircraft.
The DZMx Remote Head measures only 22.2mm (0.87 inches) deep, making it ideal for crowded avionics spaces.
More on the Remote Head
Uninterrupted hybrid tracking
Whether you go out of network range, make a call or send data, DZMx keeps tracking by auto-switching to the best available option:
More about DZMx Voice, PTT, Data and Tracking capabilities:
Want to know more about Flightcell DZMx? Check out the additional information linked below and then go on to view DZMx' specifications.
